20 Amp 5-IN-1 Professional Electroplating Station

£481.99
(Excl. tax)
SKU: 20A-PRO-STA



With 6 professional options for stripping, activating, plating, heating, agitation and rotating you have everything you need in 1 work station.

This item is a special made to order product, please allow a minimum of 9-12 working days for delivery.

Contents Listing

1 x Electroplating Station

Please note: no chemicals / solutions are supplied with this set-up, please browse our chemicals or enquire for more information.



Overview of use

Electroplating station for general tank electroplating. Please see below for more details specific to this product.

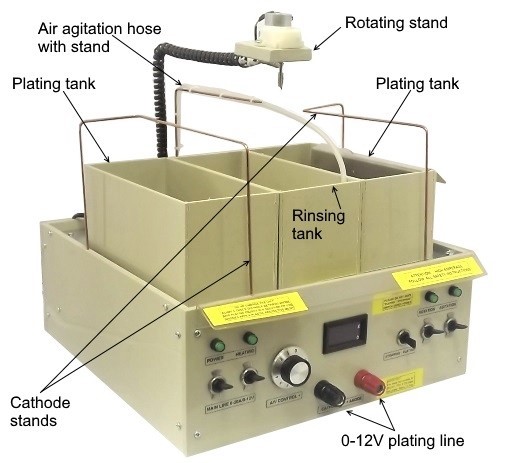

  • Input: 110 VAC - 240 VAC
  • Output: 0-12 VDC / 0-20 ADC continuously + 30 A on pick
  • Plating line with 4-mm connectors for your comfort
  • 1 CRS (Cathode Rotating Stand 4-6 RPM) with plastic gears (to avoid corrosion by chemicals evaporated from tanks) and with a movable motor on a metal arm (rod)
  • 3 plastic PP tanks with dimensions in INCH (mm): 8"x3,3/5"x3,3/5"H (190x90x90(H))
  • Movable 50-Watt adjustable glass heating element with a thermostat
  • Plating-Stripping switch (for removing all chrome from previously plated objects
  • Digital A/V meter on the front panel for your convenience
  • Air agitation system with a clear PVC hose on a metal arm (including compact air compressor) for high-quality coating and to save your chemicals
  • Automatic overload cut-off system
  • Two sets of cables: for mainline and for brush/pen/CRS.
  • Set of anodes for cleaning, copper, nickel, zinc, chrome, gold, and silver plating purposes
  • Approximate dimension of the station in INCH (mm) 13"x13"x16"H (325x325x300(H) with arms
  • Beige-coloured polypropylene plastic body (chemically resistant material including acids) for your safety
  • An electroplating brush/pen can be connected to the main plating line as well (not supplied but available in our online shop - see related products)
  • Set of anodes for cleaning, copper, nickel, zinc, chrome, gold, or silver plating processes
  • 3 standard polypropylene plastic tanks

Technical Specs

Name of product:

20 Amp 5-IN-1 Professional Electroplating Station

What is the maximum amp output of the supplied machine?

30 amps (on pick) 20 amps constant

Plating modes:

Tank (pen and brush plating is possible with the addition of G.S.P Brush Plating Probes but these are not supplied)

Mirror Tech capabilities:

No

Is this kit compatible with all Gold Solutions Plating chemicals / solutions?

Yes

Does this kit come with the G.S.P 5 Point Support Package?

Yes

Safety information:

Please ensure that you read and understand all instructions included with this product before use.

When using chemicals (not supplied) which are classed as hazardous, always wear appropriate personal protective equipment (PPE) and ensure that you read and follow the supplied Safety Data Sheets for each chemical for details on how to stay safe.
